Large Capacity Measurement Right on the Shop Floor

AIMS Summit CMM

Summit 10.10.10 is a shop floor CMM designed specifically to measure large, heavy, or cumbersome workpieces. It has an extra-large capacity: 1,000 mm in X, Y, and Z axes for a total of one cubic meter of measurement space and a 2,200 kg weight limit. Unlike our smaller, portable shop floor CMM, the Revolution HB, Summit is stationary.

To stand up to the shop floor environment Summit features a polymer cast base, reinforced Z-axis, and materials that are thermally- and vibrationally-stable. As part of its space-saving design, Summit requires no shop air for operation. All that’s needed is a standard 110/220-volt outlet, making it easy to integrate into the floorplan and workflow. It’s especially useful for situations requiring a high percentage of part inspection during production because the CMM is right at the point of need.

Read the Summit 10.10.10 feature in Metrology News

Components

Summit is equipped with a REVO-2 five-axis probe head supported by a reinforced Z-axis. Five-axis movement allows for accurate and flexible measuring and high productivity, along with infinite positioning and rapid calibration. It also incorporates the latest REVO-2 sensors including RVP vision and SFP2 surface measurement. Options for PH20 5-axis touch trigger or noncontact vision measurement are available.

Watch the Summit 10.10.10 in Action

To make it easier to measure large and difficult-to-transport parts, Summit can be used with a robotic loading and unloading system or a conveyor. And to maximize uptime and throughput, it uses non-wear, zero maintenance, dual linear motors. It can also be equipped with automatic tool adjustment to compensate for tool wear over time. Summit runs on user-friendly MODUS or CMM-Manager software, measurement simulation, collision prediction, reporting, user-friendly interface, full compatibility with REVO-2 hardware, and native DMIS support.

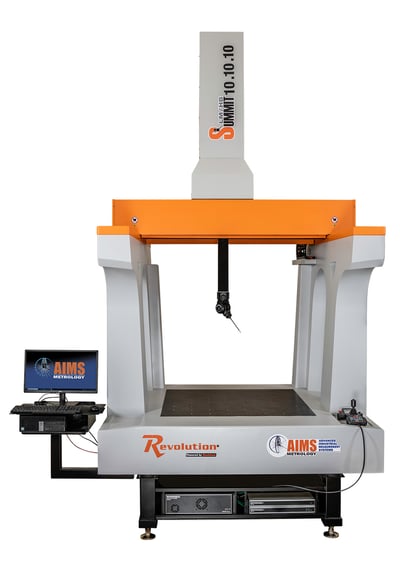

Key FeaturesSummit straight view 1024

  • Renishaw Revo-2 5-axis probe head
  • RVP vision and SFP2 surface measurement sensors
  • Touch trigger and non-contact vision measurement
  • 1 cubic meter/2,200 kg capacity
  • Polymer cast base for vibration isolation
  • Temperature compensation design for thermal stability
  • Reinforced Z-axis to support probe head
  • Durable linear motors
  • Automation via robotic load/unload or conveyor for pass-through
  • Space-saving design
  • CMM-Manager or MODUS software
  • Complete Renishaw Probing available on this system
