Revolution® HB Shop Floor CMM

5.9.4 & 8.10.6

New Call-to-action

Click here to read more about this CMM in CMM Quarterly.

Mobility, 5-axis Capability, and Shop Floor Worthy All in One

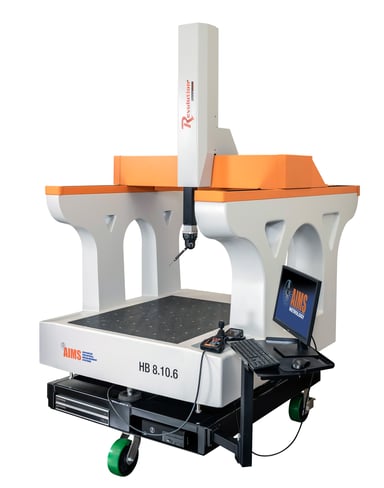

This is the only mobile 5-axis shop floor CMM on the market, and is fully made in America.  It features a roll-around stand, enabling movement of the Revolution® from one area to another.  Casters can then be tightly locked to keep it in place.  The added bonus of this mobility also includes its use of 110/220 volt outlets – there’s no need for shop air.  Attached to the stand, the Revolution®’s polymer-cast base includes built-in vibration resistance and thermal stability for life on the shop floor.  Mechanical bearings also further help dampen the vibration abuse shop floors can offer.  For the purposes of 5-axis capabilities, the Revolution® uses a PH20 probe head, which offers drastically improved accuracy and repeatability – performing 3 times faster than conventional probe heads.

Renishaw FASTRACK Scales Casters for Mobility Linear Guides Renishaw 5-axis PH20 Probe System Polymer Cast Base
Close

Renishaw FASTRACK Scales

Renishaw’s TONiC scale system has advanced filtering optics within the readhead to provide very low jitter, resulting in excellent positional stability and smoother velocity control in less-than-ideal environments. This makes TONiC the ideal encoder for applications where movement must be tightly controlled. Coupled with the FASTRAK scale system which has superior thermal stability, you have the best package for precision measurements on the shop floor.

Renishaw FASTRACK Scales
Close

Renishaw 5-axis PH20 Probe System

PH20 probe head offers unique ‘head touches’ for rapid touch-trigger measurement, and fast infinite 5-axis positioning to guarantee optimal feature access. Unlike conventional touch trigger measurement methods which rely on speeding up the motion of the CMM’s 3 axes to measure quickly, PH20 uses head motion to minimize the dynamic errors of the CMM at higher measurement speeds.

Renishaw 5-axis PH20 Probe System
Close

Polymer Cast Base

Revolution’s® polymer-cast base, like those found on precision grinders and semiconductor equipment, includes built-in vibration resistance and thermal stability for life on the shop floor.

Polymer Cast Base
Close

Linear Guides

Our Revolution® Linear Guides are the same used in high end machine tools. The use of the ball cage eliminates friction between balls and increases grease retention, to achieve low noise, high speed, and long-term maintenance-free operation.

Linear Guides
Close

Casters for Mobility

The only mobile 5-axis shop floor CMM on the market – It features a roll around stand, enabling movement of the Revolution® from one area to another.

Casters for Mobility

HB Series is available in 2 Measuring RangesHB 8.10.6 rs sm

HB 5.9.4 – X: 500mm Y: 900mm Z: 400mm              HB 8.10.6 – X: 800mm Y: 1000mm Z: 600mm

Components
The Revolution® CMM comes equipped with Renishaw TONiC and FASTRACK encoder scale system – accurate to an extreme degree, fast, and offers quick and easy installation.  Its precision drive systems can be counted on to be durable and give reliable inspections in any shop floor condition.  Lightweight bellows and covers protecting the machine’s components create friction-reducing, smooth-running and precise performance.  Revolution®’s vibration dampers also further reduce the amount of shock and vibration to prolong machine life.

Inspection Software
AIMS has multiple software options to align to your needs.  Modus software from Renishaw is built around the 5-axis probe systems.  The standard includes Native DMIS, CAD, Modus Organizer, and Graphical Reports.  Options include Modus Gear, Modus Spline, Modus Airfoil, and MMclient.  MMclient allows sharing between Modus and MeasureMax.

CMM-Manager from QxSoft is the industry's most intuitive CMM Software on the market.  This easy to use graphical software provides full collision avoidance programming and automatic path generation for 5-axis probing.

Process Control Software
Includes QC-CALC and Reaction Plan Manager.  QC-CALC is a unique process control tool that provides the user with access to real-time data and builds a database of process performance.  The powerful statistical analysis tools enable the establishment and maintenance of control over the entire process.  Extensive analysis can be performed, including real-time numeric data collection and offline statistical analysis of recorded data.  The Reaction Plan Manager is user friendly and displays clear, specific instructions to the operator on how to make adjustments to keep the process in control.  This software uses 2 applications: one to build (Editor) and another to view (Viewer) Reaction Plans.

Watch the HB Shop Floor CMM at work.
