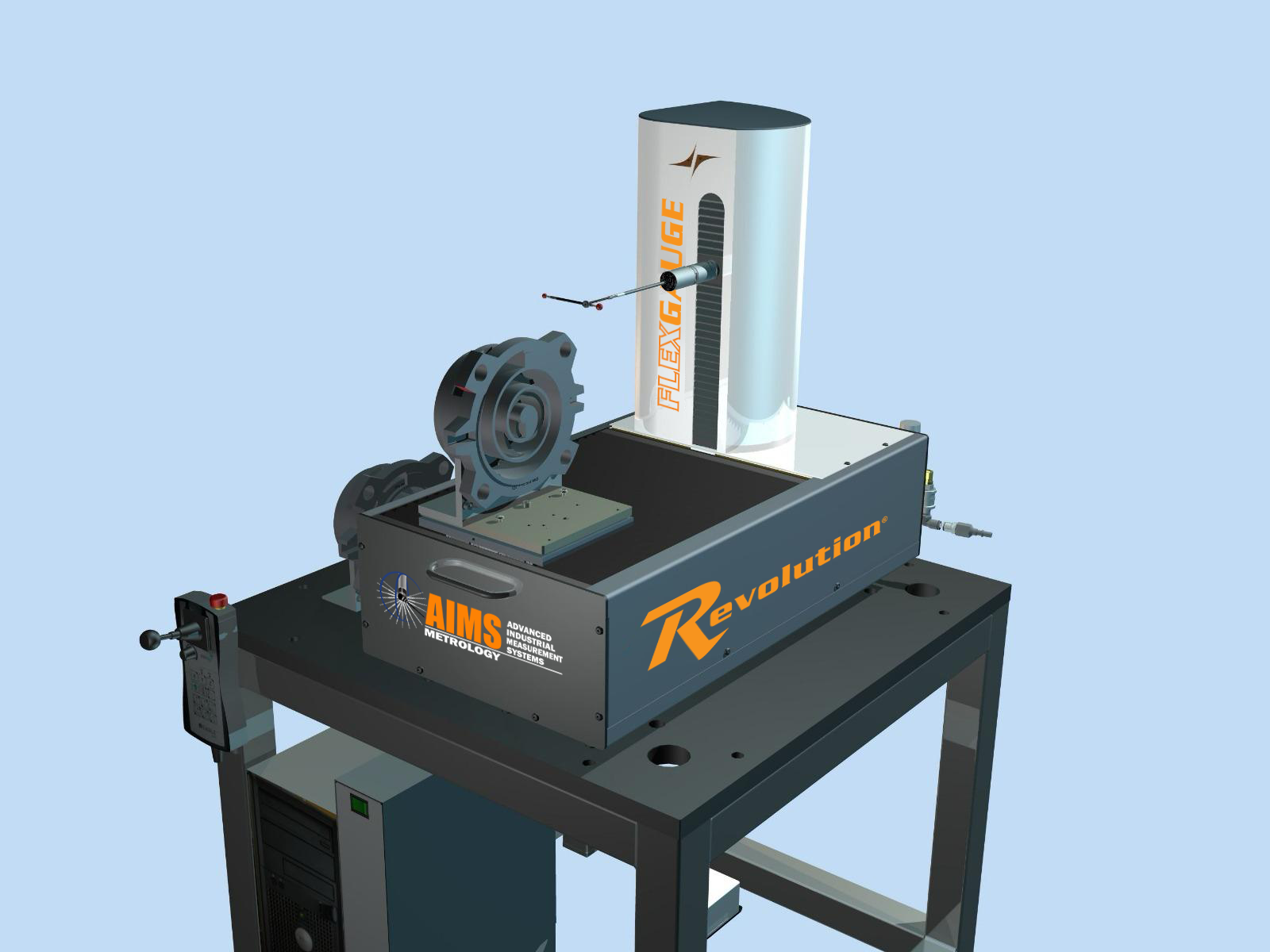

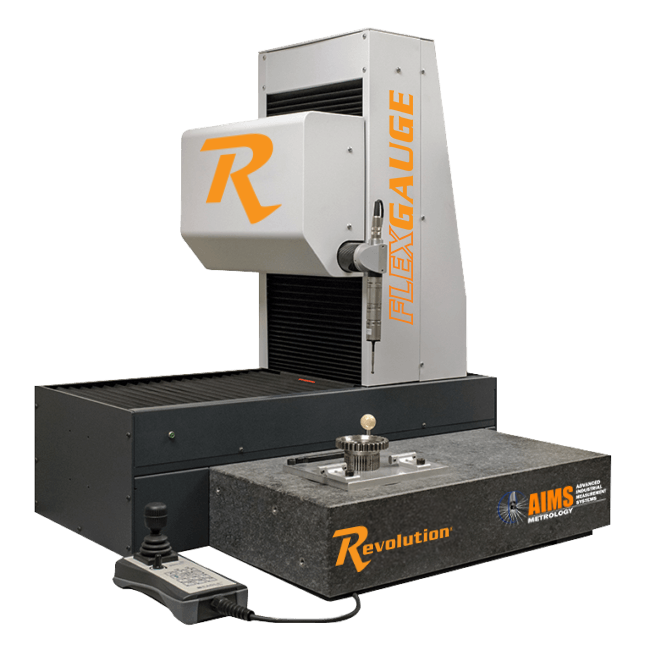

Revolution FlexGauge

FlexGauge systems specialize in flexible measuring systems and software for applications requiring tactile probing. Compared to traditional hard gauging set-ups, our FlexGauge line of systems offer unique advantages in performance and cost of ownership.

FlexGauge systems offer flexibility for users who need measuring systems and software for small, high precision parts or families of parts. FlexGauge provides performance advantages and cost savings when compared to traditional hard gauging systems. FlexGauge systems are designed to provide fast, accurate measurements on the manufacturing floor. A rugged alternative to custom gauging systems.

High Accuracy for the shop floor:

  • Advanced monolithic air-bearings to maintain accuracy with zero maintenance and maximal sturdiness.
  • Granite base and column for top thermal behavior.
  • Extra-light unidirectional carbon-fiber probe holding arm for maximum dynamics and thermal independence.
  • Minimized mass of moving parts to optimize speed and performance.
  • Drive system by belt or friction for unsurpassed acceleration and speed.
  • 0.1um resolution with floating steel or glass ceramic scales.
  • Thermal compensation of machine and part always included.
  • Sensors available - TP20 / TP 200 / SP25 Scanning.

Typical applications include:

Acetabular
Connecting Rod Hydraulic Cylinders
Actuator Rods CV-Joints Medical Devices
Bearing Measurements Firearms Scroll Compressors
Blade Root Gears & Gear Blanks Tibial Tray
Brake Calipers Hip Stems Turbo Compressor Bodies
Camshafts Hubs Watch Components
