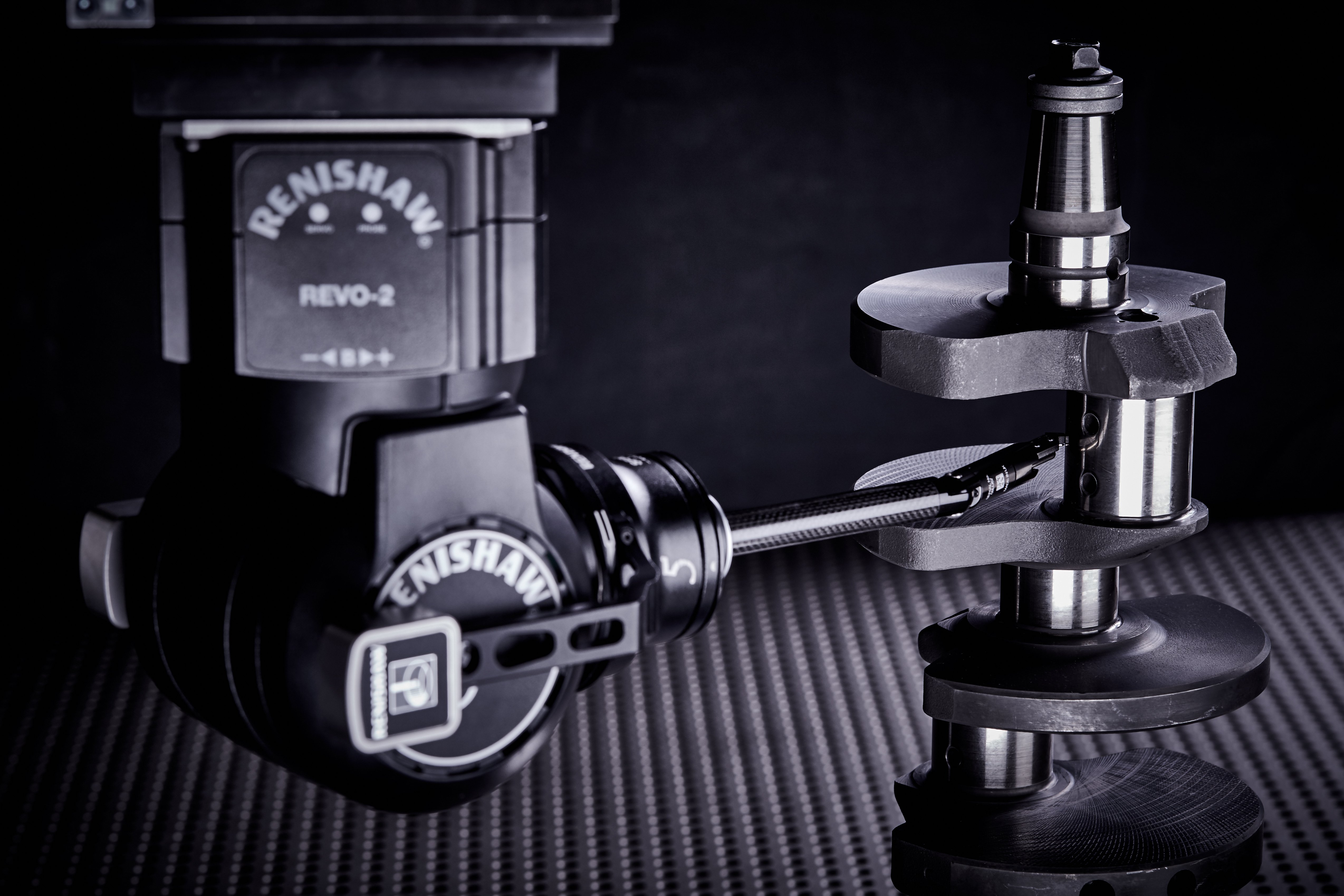

SFP2 Surface Finish ProbeRenishaw SFP2

Powered by 5-axis measurement technology, the SFP2's automated surface finish inspection offers significant time savings, reduced part handling and greater return on CMM investment.

The SFP2 system consists of a probe and a range of modules, which are automatically interchangeable with all other probe options available for REVO, providing the flexibility to easily select the optimum tool to inspect a wide range of features, all on one CMM platform. Data from multiple sensors is automatically referenced to a common datum.

Surface finish measurement is fully integrated with the standard CMM inspection program thanks to the automatic changing of the SFP2 probe and stylus holders using the MRS-2 rack and RCP TC-3 ports.

Click here more specifics on SFP2.



REVO-2 RVP Vision Probes

The REVO vision probe (RVP) provides non-contact vision measurement on an infinitely positioning, 5-axis platform. Now, tactile scanning measurement, surface finish analysis and non-contact inspection can all be performed on one CMM.

 RVP_VM11





VM10 vision moduleVM10bigger

The VM10 vision module can be used for inspecting features or holes that are typically larger than 1 mm, with a maximum field of view of 40 mm × 50 mm.

Typical applications for the VM10 module include the inspection of thin sheet metal parts like combustor casings for aerospace engines.

Click here for more information.

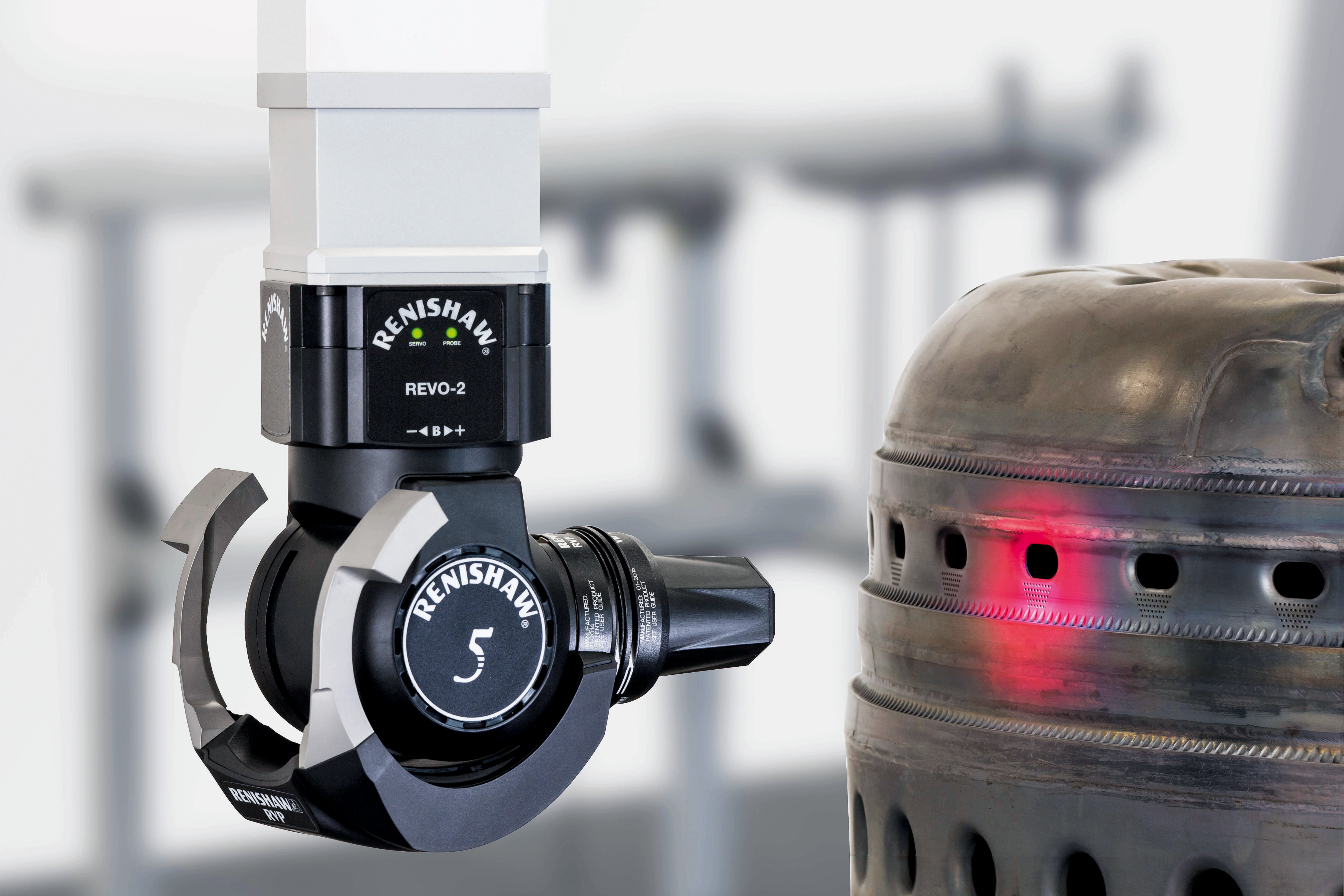

VM11 vision moduleRVP_VM11

The VM11 vision module can be used for inspecting features or holes that are typically 0.4 mm or larger, with a maximum field of view of 10 mm × 12.5 mm.

Typical applications for the VM11 module include laser drilled cooling holes in aerospace engine blades and components.

Click here for more information.



RVP In Action

Exhibition video RVP_2018 (mp4)

 Introducing the RVP vision probe.
