REVO-2 RVP Vision Probes

The REVO vision probe (RVP) provides non-contact vision measurement on an infinitely positioning, 5-axis platform. Now, tactile scanning measurement, surface finish analysis and non-contact inspection can all be performed on one CMM.





VM10 vision moduleVM10bigger

The VM10 vision module can be used for inspecting features or holes that are typically larger than 1 mm, with a maximum field of view of 40 mm × 50 mm.

Typical applications for the VM10 module include the inspection of thin sheet metal parts like combustor casings for aerospace engines.

Click here for more information.

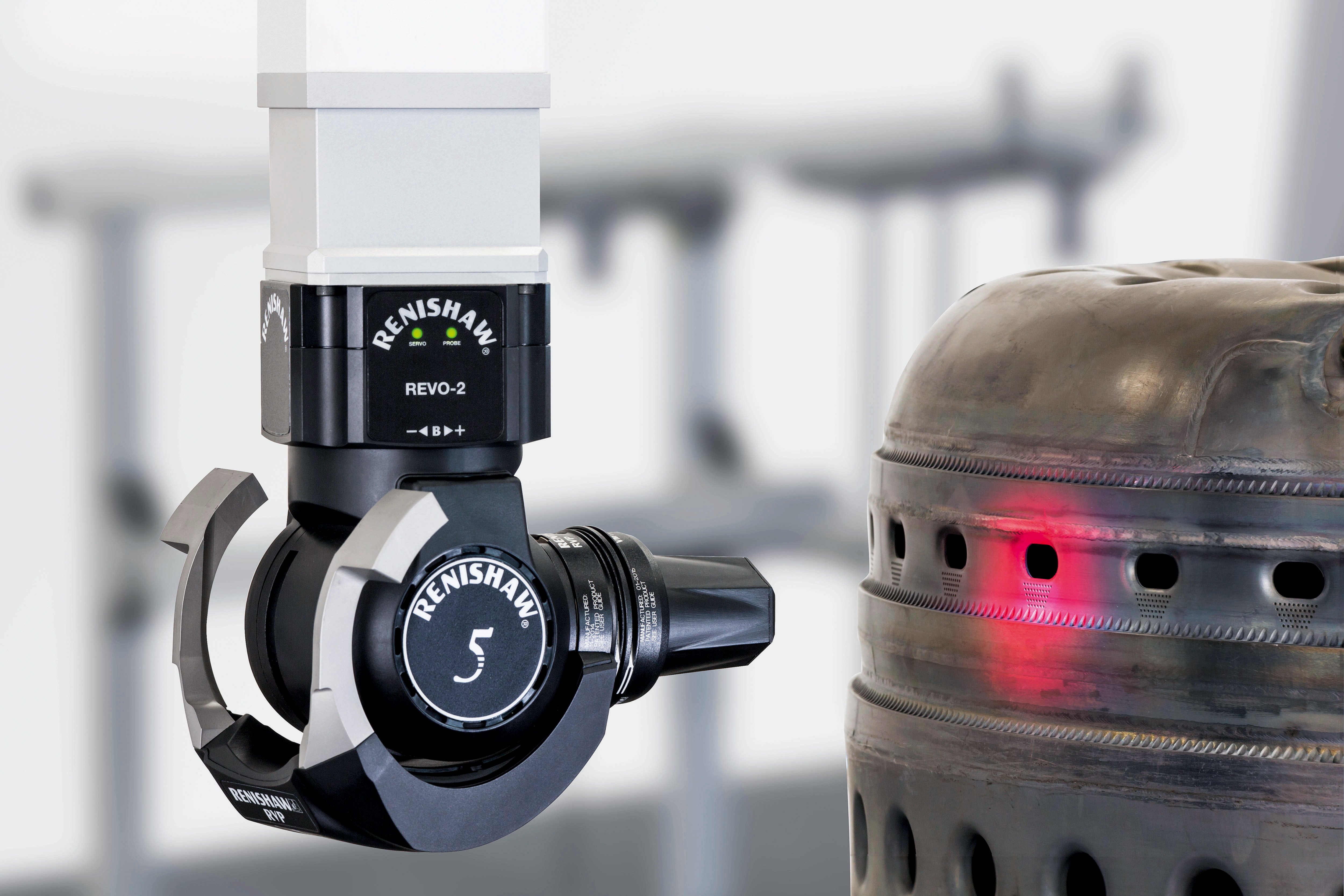

VM11 vision moduleRVP_VM11

The VM11 vision module can be used for inspecting features or holes that are typically 0.4 mm or larger, with a maximum field of view of 10 mm × 12.5 mm.

Typical applications for the VM11 module include laser drilled cooling holes in aerospace engine blades and components.

Click here for more information.



RVP In Action

Exhibition video RVP_2018 (mp4)

 Introducing the RVP vision probe.
